Recently I was called to a mill to investigate stalls on a machine that tests fingerjointed lumber for tensile strength. A piece of lumber is moved into place and two cylinders bend it backwards to see if it breaks. If it does, it is sent to a reject pile to be remanufactured. If it survives the test, it is packaged and sold. The machine was testing the lumber, but it was taking an awfully long time doing it and slowing down production. I watched the machine operate and saw that the conveyor placed the lumber smoothly, but when the two cylinders began to extend, they would stall and then slowly complete their strokes. When this happened, I noticed that the system pressure gauge dropped significantly then gradually built pressure back to normal.

This is a classic symptom of an accumulator failure. The purpose of a hydraulic accumulator is to add flow to the system to keep pressure near normal whenever the system demands exceed the output of the pump. In this particular case, the output of the pump was more than enough to handle the hydraulic motor that moved the conveyor, but not enough to rapidly cycle the cylinders. Instead of using a larger than necessary hydraulic pump, the machine was designed with a piston accumulator mounted at each cylinder. Whenever the system demanded less flow than the pump could deliver, excess flow was used to fill the accumulators. Then when the cylinders began extending, flow was delivered from the pump and both accumulators to meet the demand. It was obvious that this demand for flow was not being bet because the system pressure would drop each time the cylinders began extending.

Our first step was to check the pre-charge on the accumulators. Both accumulators were found to have a pre-charge more than twice the recommended amount. One of the technicians was surprised at this because he had only recently set the pre-charge. He had found the pre-charge high at the time and had bled some of the nitrogen off of them to bring it back down to what it should have been. He had assumed that someone had charged the accumulators too high in an attempt to regain the lost speed of the machine.

I told him not to necessarily assume that this was the case. Piston accumulators can become overcharged as they are used. This happens because of hydraulic oil that bypasses the piston and collects on top of it. When this happens, the nitrogen on top is displaced by oil and the result is an increase in pre-charge pressure and a corresponding loss of speed in the machine. Simply bleeding nitrogen from the accumulator will not restore its capacity because of the oil that remains on top of the piston limiting its stroke. In order to return the accumulator to its former state, the oil must be removed from the top of the piston. Then the accumulator can be pre-charged properly and it will deliver its original amount of additional flow.

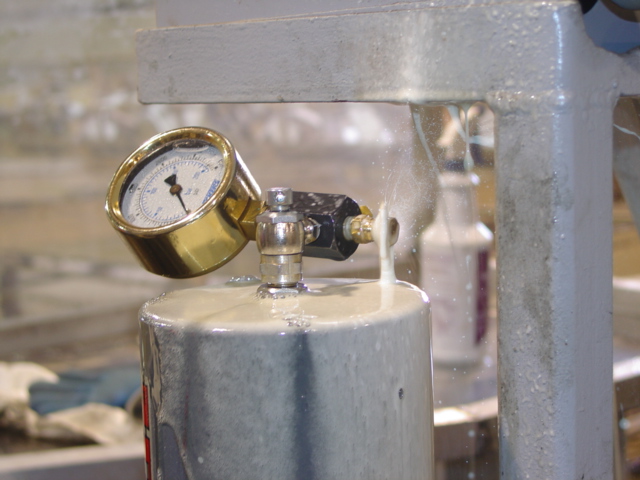

To remove the oil from the top of the piston, the charging rig must be installed and the bleeder valve opened while the machine is pressurized. All of the nitrogen and all of the oil will then be removed from the top of the piston. It may be wise to cover the accumulator with a bucket or use some other means to limit where all of the oil will go. Since the bleeder valve is very small on the charging rig and the system pressure is usually quite high, oil will shoot from the bleeder valve in a fashion not unlike water coming from a pressure washer. When the oil stops coming out, the piston is at the top and the accumulator can then be pre-charged to its proper level.

If the oil never stops coming, the piston is badly worn and must be replaced. To do this, isolate the accumulator from the rest of the machine (or better yet - turn the machine OFF!) and open the dump valve. The oil pressure will be released and even a badly worn piston will stay at the top of the accumulator. The top of the piston accumulator can now be safely removed, the piston pulled from the accumulator with a piston puller and a new piston installed.
